| Plaats van herkomst: | China |
|---|---|
| Merknaam: | BAXIT |
| Certificering: | CE |
| Modelnummer: | PML5927-NF10, NF10KPDC |
| Min. bestelaantal: | 1 uint |
| Prijs: | US $185.00 / Piece |
| Verpakking Details: | Kartonnen verpakking |
| Levertijd: | 3-5 werkdagen |
| Betalingscondities: | L/C, D/A, D/P, T/T |
| Levering vermogen: | 100/eenheid/dag |

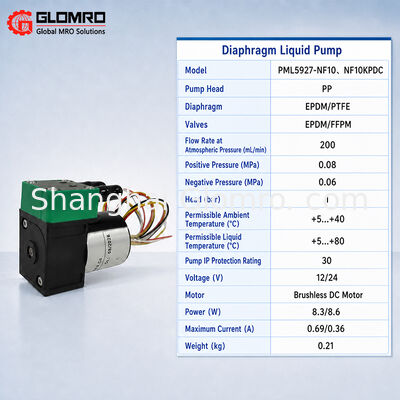

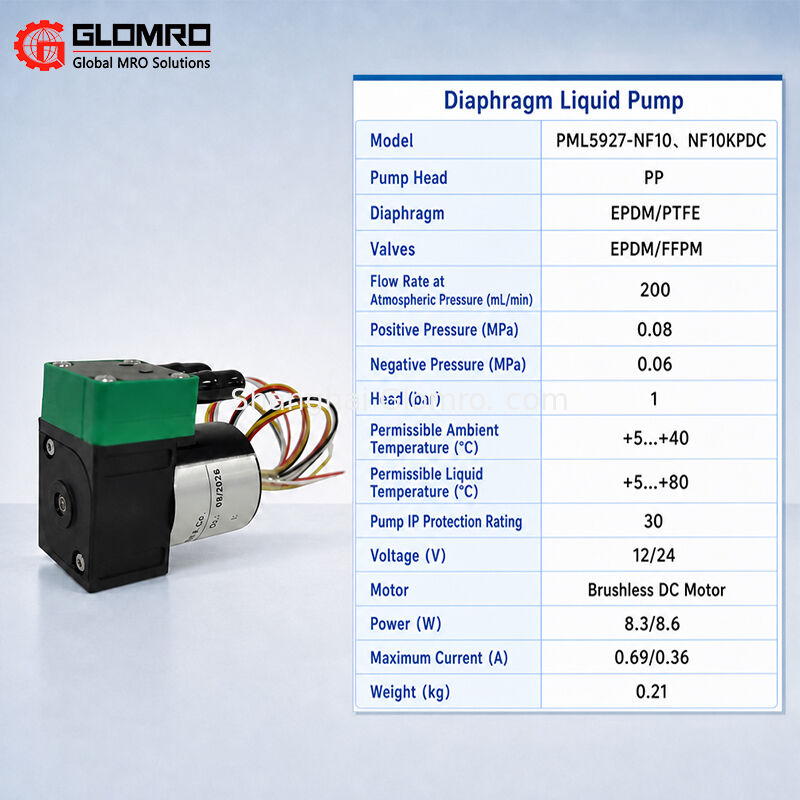

| Naam: | Membraan vloeistofpomp | Pomp hoofd: | PP |
|---|---|---|---|
| Diafragma: | EPDM/PTFE | Kleppen: | EPDM/FFPM |
| Stroom: | 200ml/min | positieve druk: | 0.08Mpa |
| Negatieve druk: | 0,06 MPa | Hoofd: | 1 bar |
| Toegestane omgevingstemperatuur: | +5~+40℃ | Toegestane vloeistoftemperatuur: | +5~+80℃ |
| IP-beschermingsfactor pomp: | 30 | Spanning: | 12/24V |
| Motor: | Borstelloze DC | Powe: | 8,3/8,6 W |
| IMAX: | 0,69/0,36A | Gewicht: | 0,21 kg |
| Markeren: | DC24V diaphragm gas sampling pump,corrosion-resistant PTFE diaphragm pump,low noise self-priming CEMS pump |
||

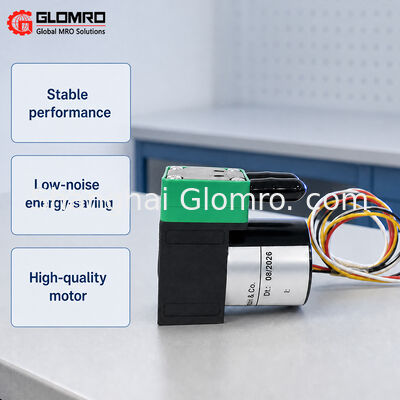

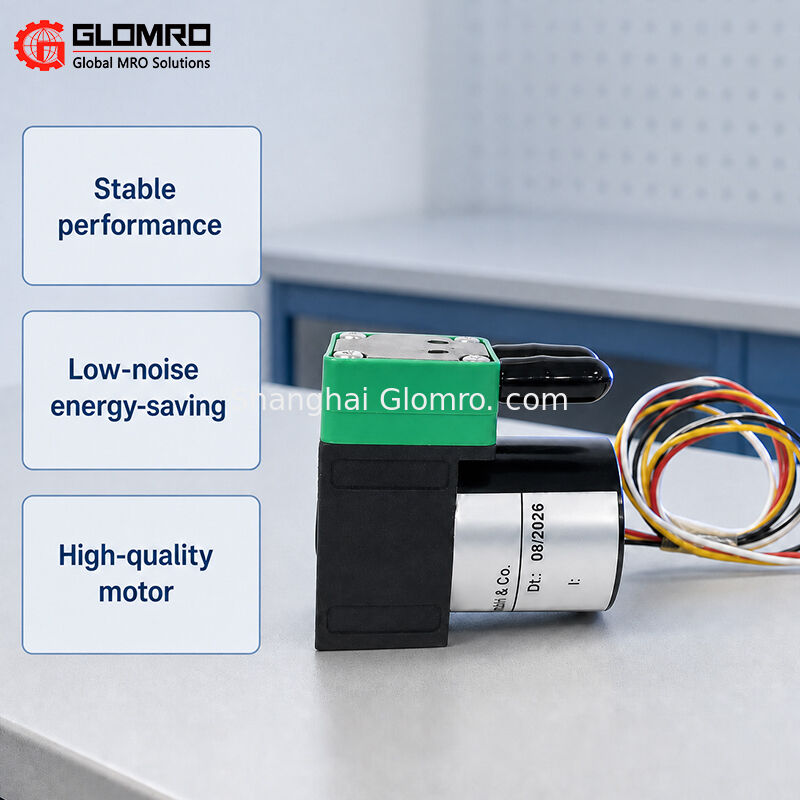

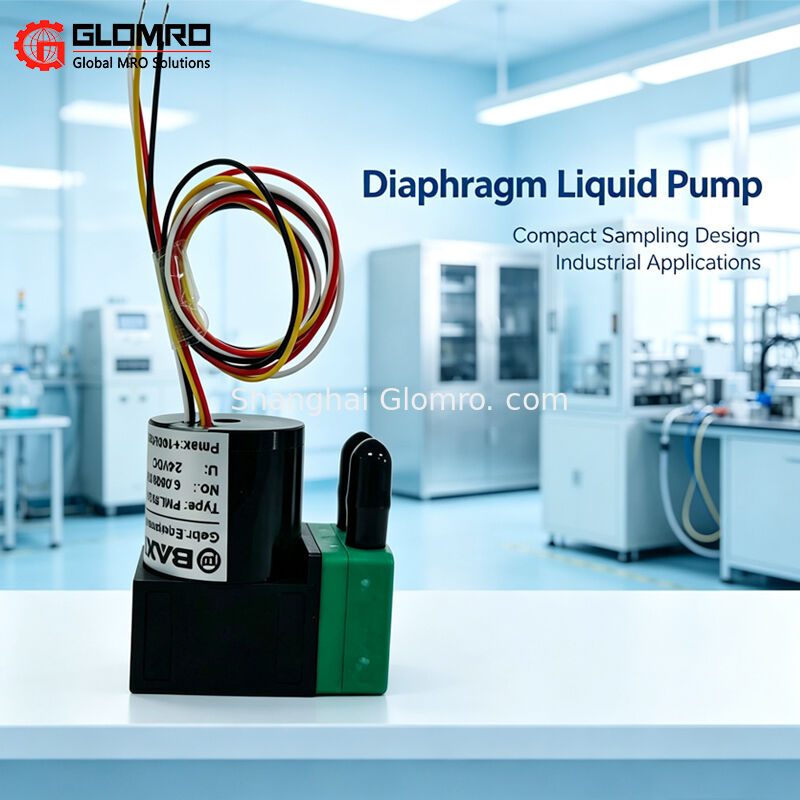

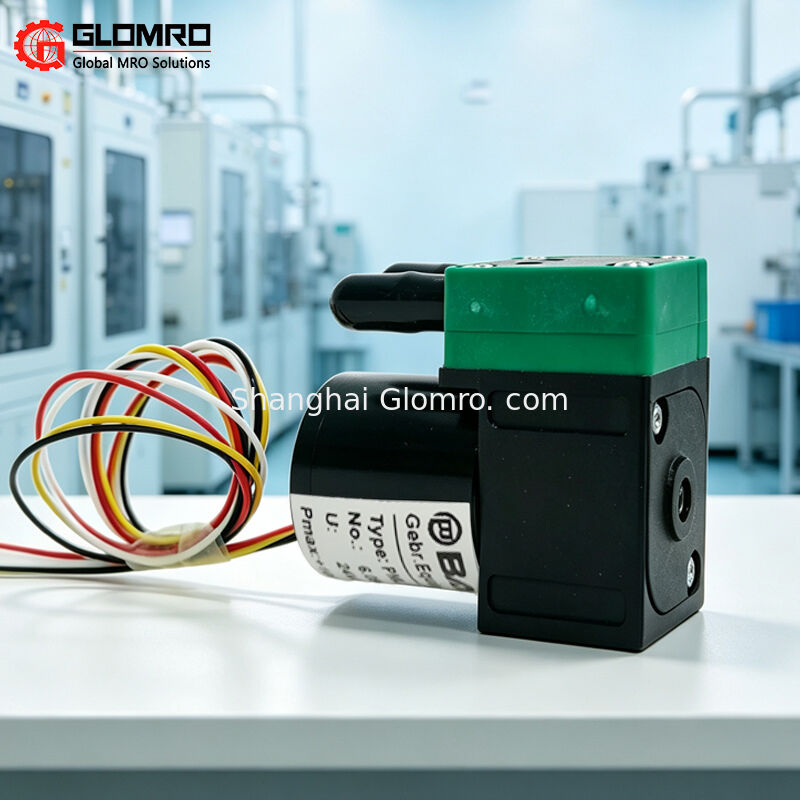

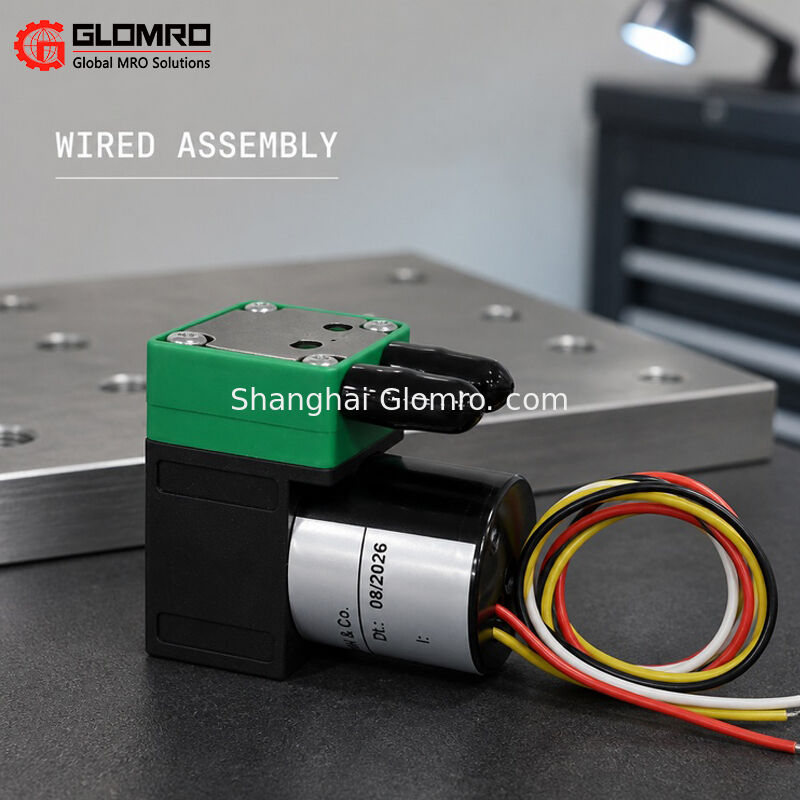

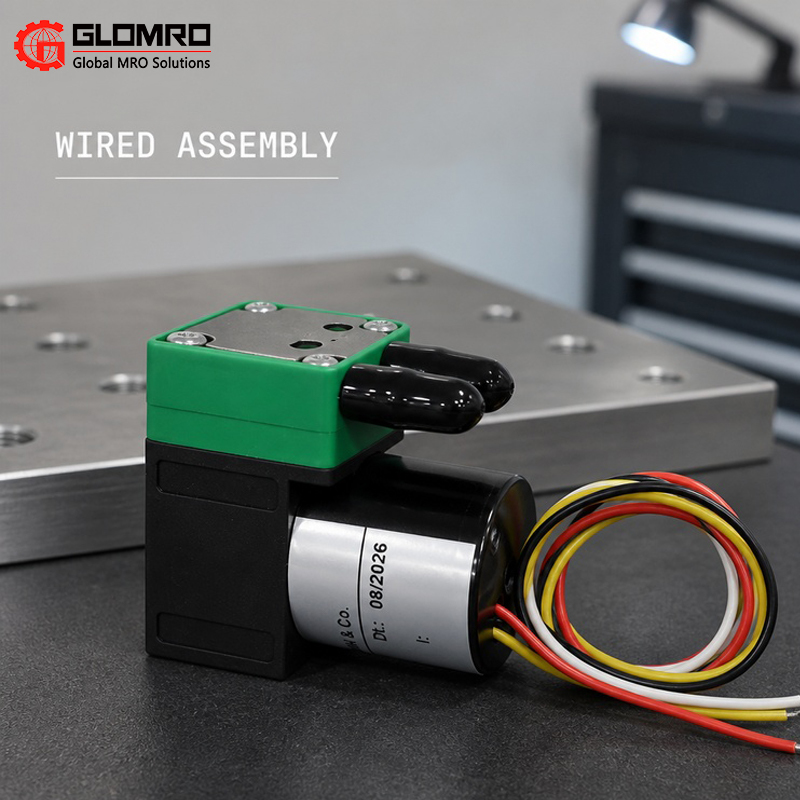

BAXIT PML5927-NF10/NF10KPDC Diaphragm Liquid Pump Application: BAXIT brushless diaphragm liquid sampling pump PML5927-NF10, NF10KPDC, features a PP pump head combined with EPDM/PTFE diaphragm, offering excellent corrosion resistance. It is driven by a brushless motor, operates with low noise and stable performance, and comes with a self-priming function. The flow rate is 200ml/min and the lift height can reach 10 meters. It is suitable for applications such as water quality
