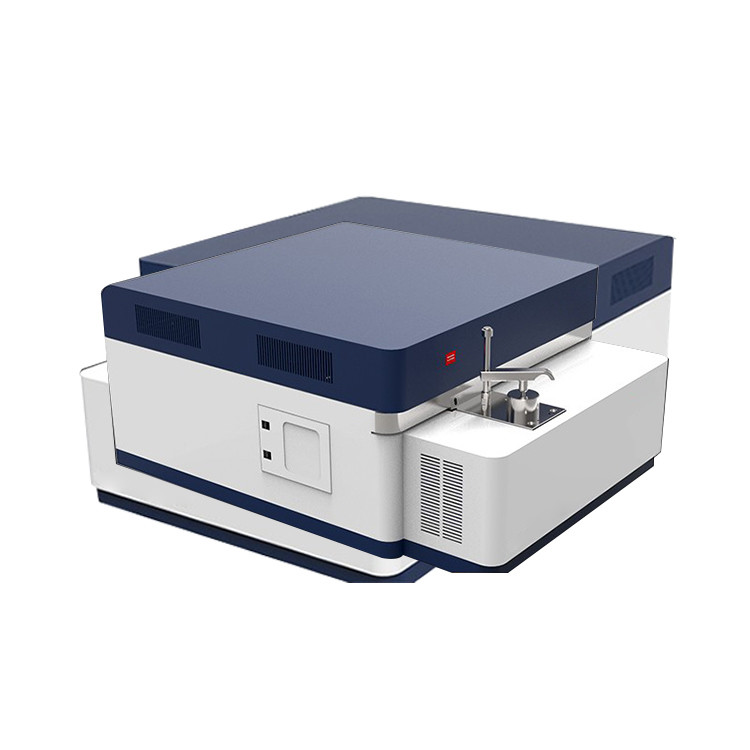

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer

Basisinformatie
Plaats van herkomst: China
Merknaam: BAXIT
Modelnummer: BXT-DSF600/BXT-DSF900
Min. bestelaantal: 1
Prijs: US$17,805-18,780/unit
Verpakking Details: Kartonnen doos/houten doos
Levertijd: 5-8Werkdag
Betalingscondities: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Levering vermogen: 10000 stuks
Gedetailleerde informatie
Model: BXT-DSF600 Detectiematrix: Op basis van ijzer, op basis van koper, op basis van aluminium, op basis van nylon, op basis van kob
Testtijd: Afhankelijk van het type monster, is het over het algemeen ongeveer 25 seconden. Optisch systeem: Paschen-Runge Rowland Cirkel Volledig-Spectrum Optisch Systeem
Golflengtebereik: 160-800nm Brandpuntlengte: 300 mm
Detector: Hoge-resolutie multi-CMOS beeldsensor Elektrode: Wolfraamstraal-elektrode
Markeren:

direct reading Emission Spectrometer

,

Metal analysis Emission Spectrometer

,

Full-band Emission Spectrometer


Productomschrijving

Full-spectrum direct reading spectrometer


            The full-spectrum direct reading spectrometer adopts international standard design and manufacturing techniques, and utilizes fully digital technology to replace the cumbersome photomultiplier tube (PMT) analog technology. It is in sync with international spectrometer technology and features a digital excitation light source, an international-level detector, and a high-speed data reading system, enabling the instrument to possess high performance, low detection limit, long-term stability, and repeatability.
            The spectrometer is one of the preferred devices for quality monitoring, material type identification, material research and development in the metal manufacturing, processing, and metallurgy industries.

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 0

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 1

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 2

Technical Specifications

Model BXT-DSF600 BXT-DSF900
Detection Matrix Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc. Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc.
Testing time Depending on the type of sample, it is generally around 25 seconds Depending on the type of sample, it is generally around 25 seconds
Optical system Paschen-Runge Rowland Circle Full-Spectrum Optical System Paschen-Runge Rowland Circle Full-Spectrum Optical System
Wavelength range 160-800nm 130-800nm
Focal length 300mm 400mm
Detector High-resolution multi-CMOS image sensor International-level detector module, high-performance linear CCD
Electrode Tungsten Jet Electrode Tungsten Jet Electrode
Analysis Gap Sample table analysis gap:3. 5mm Sample table analysis gap:3.5mm
Working temperature (10-35)℃ (10-35)℃
Storage temperature (0-45)℃ (0-45)℃
Work humidity 20%-80% 20%-80%
Purity requirements for argon gas 99.999% 99.999%
Argon gas inlet pressure 0.5MPa 0.5MPa
In an argon flow  Excitation flow rate is approximately 3. 5L/min Excitation flow rate is approximately  3.5L/min
Light source type Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS) Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS)
Discharge frequency 100-1000 Hz 100-1000 Hz
Discharge current Max 380A Max 380A
Excitation Stage Aperture 13mm 13mm
Vacuum system Vacuum system Vacuum system
Working power supply 220V AC,50/60Hz,Protective grounded single-phase power supply 220VAC,50/60Hz,Protective grounded single-phase power supply
Instrument size 720X560X370mm 860x660x360mm
Instrument weight 65kg 80kg

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 3

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 4

 Packing & Delivery

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 5
